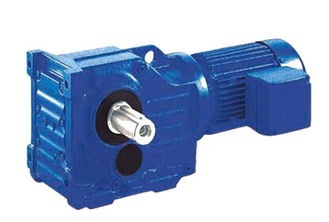

K series helical gear box reducer

K series gearbox speed reducer
K series gearbox speed reducer Supplier And Manufactures- At cztjreducer.com
【K series gearbox speed reducer】, Wholesale Various High Quality【 K series gearbox speed reducer】Products From Changzhou Tongjia【K series gearbox speed reducer】Suppliers and【 K series gearbox speed reducer】 Factory.

PRODUCT PARAMETER：
    1、K series helical gear box reducer combined with international technical requirements manufacturing.
    2、Saving space, reliable and durable, high overload capacity, power up to 200KW。
    3、Low energy consumption, superior performance, and gear reducer efficiency up to 95% or more。
    4、K spiral bevel gear reducer with low vibration, low noise and high energy saving。
    5、select high quality material, steel cast iron box, gear surface through high frequency heat treatment。
    6、After precision machining, the reducer of helical gear, bevel gear and bevel gear transmission assembly is equipped with various kinds of motors, forming electromechanical integration, which completely ensures the quality characteristics of the product of decelerating motor.
TECHNICAL PARAMETER：
   POWER：0.18KW～200KW
   TORQUE：10N·m～58500N·m
OUTPUT SPEED：0.08～263r/min
Product Name：(K series gearbox speed reducer)
Material：Cast iron
2、Features:Gearbox speed reducer with high strength, small size,service life long,low noise,high efficiency can bear large radial load and bear no more than 5% of the axial load of radial force.
Price :Negotiation
Applications：products are widely used in metallurgy, mining, lifting, chemical, textile, pharmaceutical, food, light industry, and etc.
Clients :□x supplier □ X manufacturer □X company
□ X factory □ X distributor □X agent □ X final user
Mini Quantity :1PCS
Supply Ability :2000PCS/month
Port :SHANGHAI
Payment Terms :T/T
Marketing Area :Southeast Asia,South America, North America, India, Thailand,middle east area.
Products Description:
1.The highly modular design: can be easily equipped with various types of motor or using other power input. The same model can be matched with various motor power. Easy to achieve the combination of the various models.
2.Transmission ratio: wide range，Combined models can form a large transmission ratio.
3 Installation: installation location is not restricted.
4.High strength, small size: box using high strength cast iron. The gear and gear shaft adopt gas carburizing and quenching process, so the unit volume bearing capacity is high.
5. Service life long: the correct selection (including selection of appropriate use factor) and normal maintenance conditions, the speed reducer (with the exception of wearing parts) the main parts of life generally not less than 25000 hours, wearing parts including lubricants, oil seal and bearings.
6.low noise: the main parts of the reducer are processed through precision, and through careful assembly and testing, and thus the reducer noise is low.
7 high efficiency: gear speed reducer efficiency of up to 95%
8. Can bear large radial load.
9.Can bear no more than 5% of the axial load of radial force.

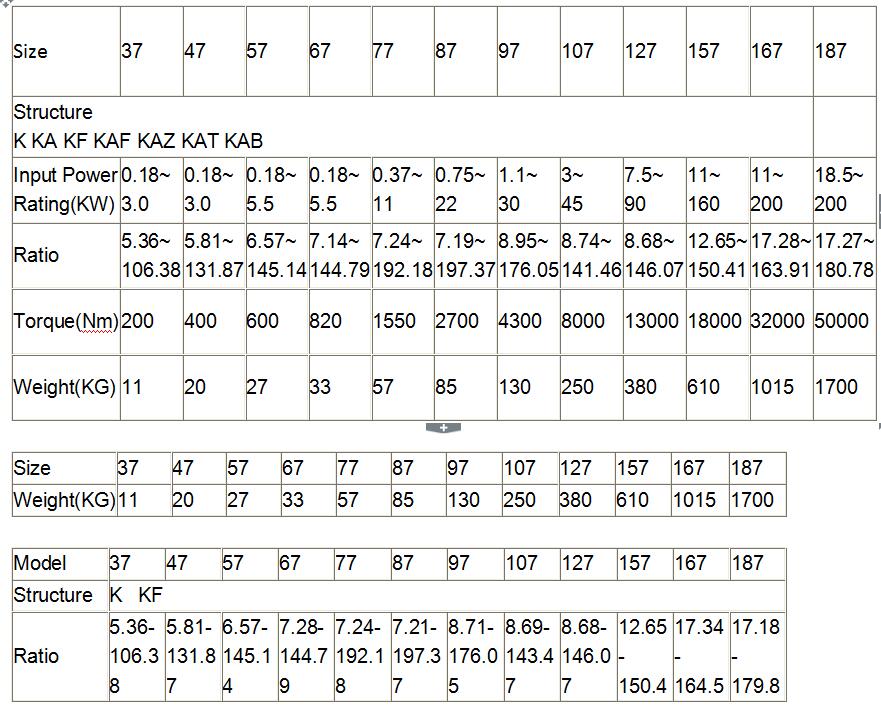

Technical parameters :





Gearbox speed reducer with high strength, small size,service life long,low noise,high efficiency can bear large radial load and bear no more than 5% of the axial load of radial force.

1. Your inquiry will be replied within 12 hours
2. Welcome drafts, we can do customized gearboxes,professional engineers for your design, drawing, ensure the quality of production if non-standard products.
3. Have many years of production experience,we could solve questions about gearbox,and we could supply easily broken parts of the gearboxes.
4.The Warranty period is 12 months.
